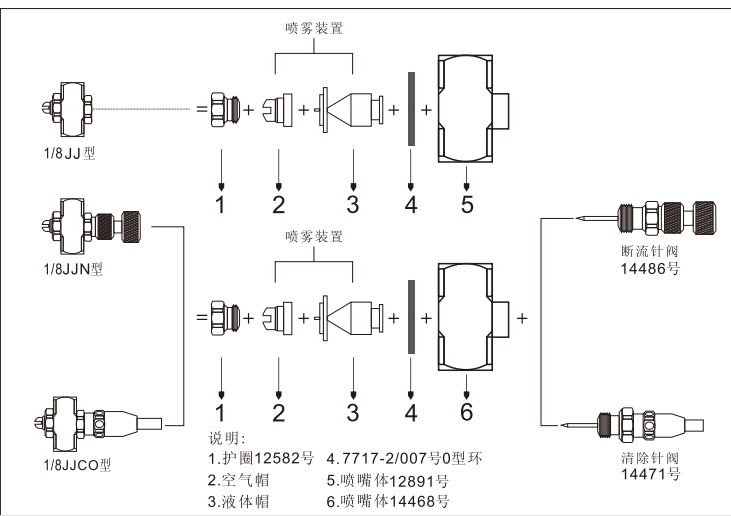

The two-fluid atomization system comprises an air cap and a liquid cap, delivering three spray patterns (flat fan, circular, and wide-angle circular) with an extensive flow range.

The nozzle body features standard inlet connection sizes (1/8", 1/4", 1/2"), ensuring compatibility with most common piping systems.

All nozzle components are interchangeable, allowing flexible adaptation to practical applications and simplified maintenance.

The fine mist generated by this air atomizing nozzle effectively humidifies and cools surrounding environments.

This series supports bidirectional spraying, significantly expanding coverage in specific humidification areas while reducing installation complexity.

Based on this technology, our company also offers 360° omnidirectional atomizing nozzles for dead-angle-free operation.

Nozzles can be equipped with optional accessories such as cleaning needles and flow control valves to meet specific process requirements.
